How to thermally insulate with a graphite insulation system?

PROBLEM: thermally insulate with graphite sheets

Buildings with insufficient insulation are subject to the phenomenon of the thermal bridge, with a consequent increase in consumption as well as serious; maintenance and temperature dispersion.

SOLUTION: Paulinkoibenta Graf

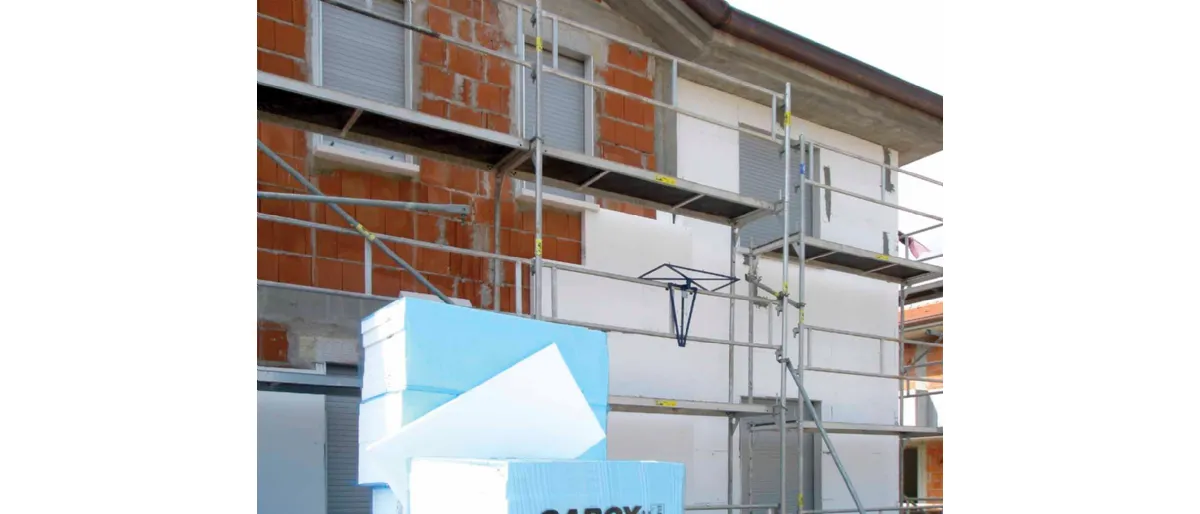

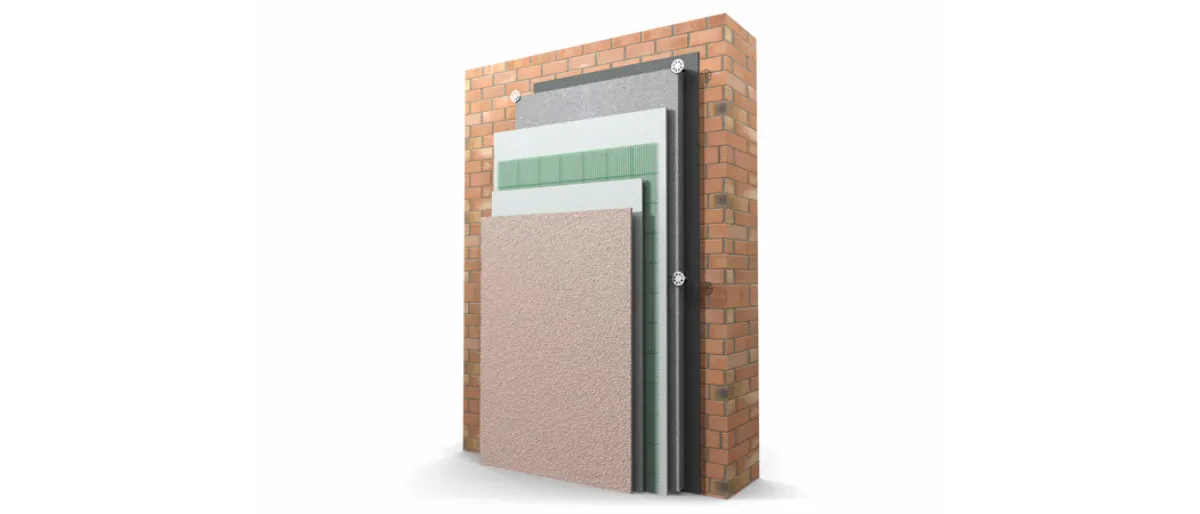

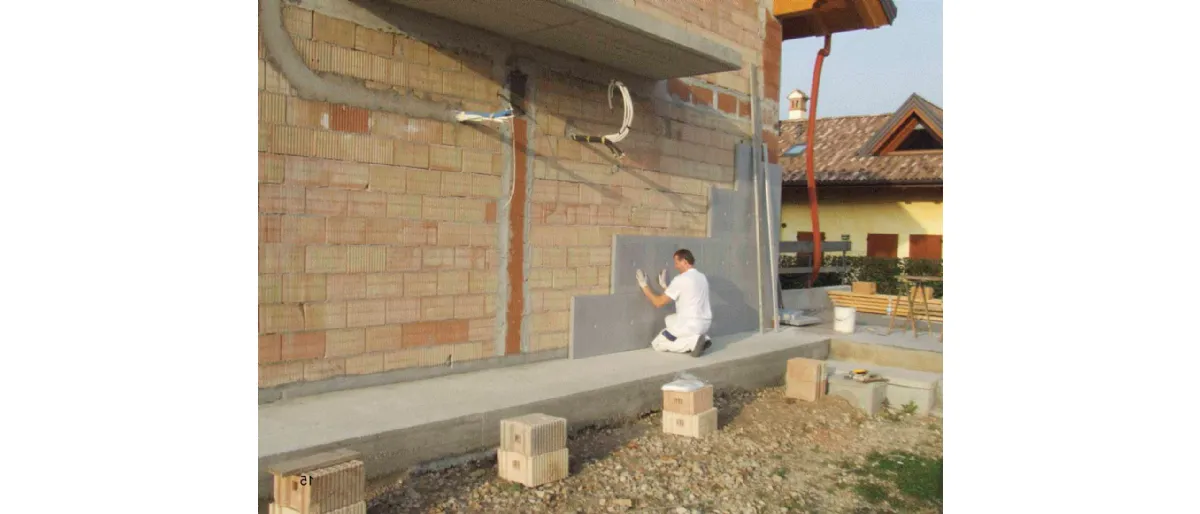

The external thermal insulation system “ PAULINKOIBENTA GRAF” with graphite EPS sheet will be made by l’ use of insulating panels in sintered expanded polystyrene enriched with graphite cut from block, type LAMPOPLACO GRAF 100, flame retardant (class E), CE marked according to the current legislation EN 13163 with a size of 1000 x 500 mm for a thickness varying from 40 to 200 mm (to be chosen according to the type of wall and thermo-hygrometric calculations) and having the following characteristics: Thermal conductivity &lambda ;: Reaction to fire: 0.031 W / m· K Euroclass E (UNI EN 12667) (UNI EN 13501-1).
